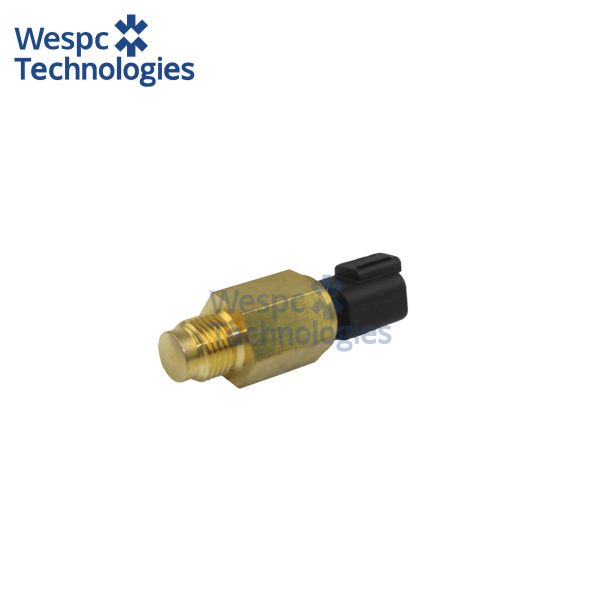

WESPC Water Temperature Sensor 385720510 For Perkins 402D-05 403C-15 403D-07

Application:

Technical specifications:

Thread interface M14 × 1.5 parallel with 19 mm hex and 18 mm probe reach for direct insertion into the thermostat housing or cylinder-head coolant gallery. Sensing range –40 °C to +140 °C via a precision NTC thermistor calibrated 2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, tolerance ±2 %. Electrical connection is a two-pin sealed Deutsch DT04-2P, IP67 rated, vibration-resistant to 50 g, overall sensor length 52 mm, weight 46 g.

Material & performance features:

Probe body is machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to glycol, long-life OAT coolants and galvanic corrosion; a copper crush-washer and fluorosilicone O-ring guarantee leak-free sealing up to 3 bar system pressure.

Interchange part numbers:

385720510, 10000-53879, 4224848M1, 4222215M1, 2755A029.
